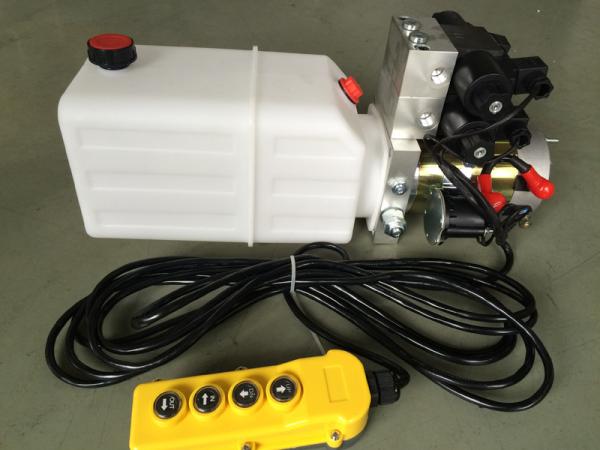

DC 24V Double Double Acting Hydraulic Power Pack
G3/8" Oil Port ,DC 24V Double Acting Mini Hydraulic Power Pack with 8L Plastic Oil Tank
This Hydraulic Power Unit is to operate double acting cylinders, complete with 2 buttons remote and cable.
DC 12V Hydraulic power unit.
DC12V 1.6Kw motor
2.1cc/r gear pump.
plastic motor cover.CODE:MC-02
8 Litre plastic tank with drain plug.
Hydraulic Power pack complete with suction filter, remote,return oil pipe and air breather.
Mounting: Horizontal Mounting.
Max pressure: 210 bar.
Relief valve: RV2-08. set pressure 180 bar, but adjustable from 50-210 bar as standard for each single acting hydraulic power pack..
Flow Rate: 5 l/min.
Relief valve and check valve for all standard power unit
Oil Port size :3/8"BSP
2 Button remote with 4 metre cable.
Hydraulic Power Packs suitable for all kinds of double acting applications. Hydraulic cylinders or Hydraulic motors .
Hydraulic Power Pack Basic Information
| Brand Name: | TIANDI |
| Model Number: | TDDL |
| Certification | CE |
| Place of Origin: | China |
Specifications
| Motor | DC 24V 1600W 2500RPM | Oil Pump | 2.1cc/r |
| Oil Port | G3/8” | Tank Size | 8L |
| System Pressure | 16Mpa | Mounting Type | Horizontal |
Commercial Terms
| Minimum Order Quantity: | 10pcs |
| Price: | USD180-220/set |
| Payment Terms: | T/T |
| Supply Ability: | 5000sets per month |
| Delivery Time: | 25 working days after deposit confirmed |
| Packaging Details: | Packed in carton boxes ,and then wooden pallets. |
DC 24V Double Double Acting Power Pack Drawing
Competitive Advantage:
1. TIANDI hydraulic is one of earliest factories of hydraulic power packs and units. We have a professional team for raw material purchasing to control the cost. Our works are all well trained and effective. All above these makes our price very competitive.
2. Our export department staff is very professional and effective. They are good at export processing, any problems and questions about products or processing, or paper woks, you can contact and count on them.
